RCM Engine Oil & Power Steering Cooler Kit 2008-2012
Price range: £749.99 through £797.99

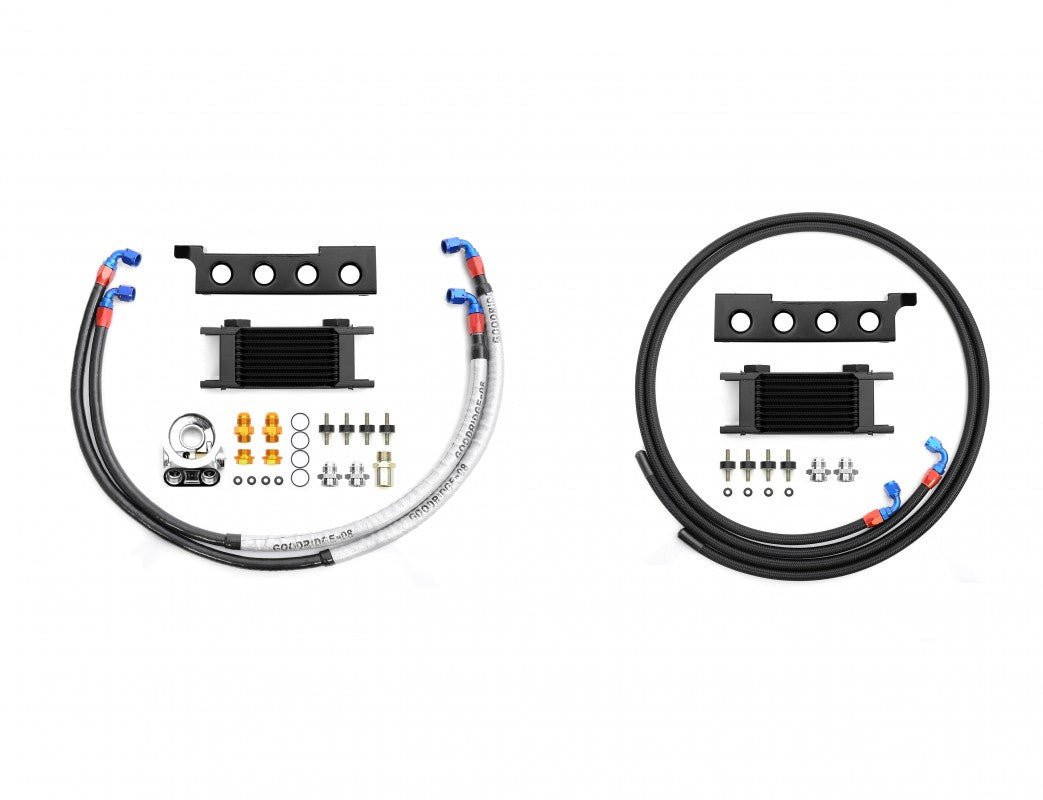

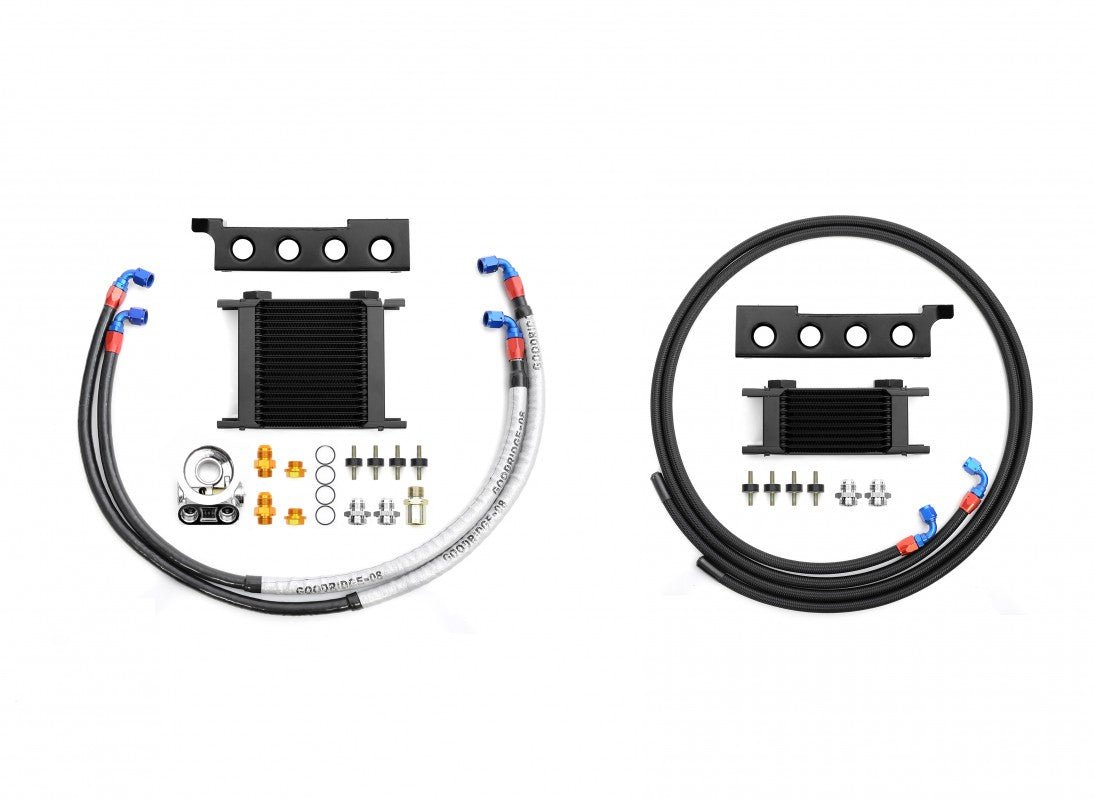

A combined engine oil and power steering cooler kit for Subaru Impreza / WRX STI (2008–2012), with Setrab cores and Goodridge braided hose. Available with 10-row coolers, or a 10-row power steering cooler paired with a 19-row engine oil cooler.
SKU:
EKS Fitment Advice
EKS currently identifies this product as Shared / Application Fitment
Compatibility of any product, greatly depends on model + year + trim + mods. Most Subaru’s are in different states of tune, so please contact Rich, from EKS to get clarity before purchasing.
Potential Applications
Subaru Impreza / WRX STI 2008-2013 (GR/GV), Subaru WRX STI 2014-2021 (VA/VAB)
Full List of EKS Fitment Evidence Types
For context, here are all categories of fitment according to EKS.
- Direct Fitment: means the product is currently listed as fitting the model/generation shown.
- Shared / Application Fitment: means the product may suit shared Subaru platforms, engines, turbos, drivetrains, brakes, cooling/intake setups or modified applications.
- Universal / Service Item: means the product is broadly useful for Subaru servicing, maintenance, workshop use or general ownership.
- Needs Confirmation: means the product appears relevant, but final fitment may depend on extra details.
Product Description
This kit combines an engine oil cooler and a power steering cooler for Subaru Impreza / WRX STI models from 2008 to 2012, to help control fluid temperatures under hard driving.

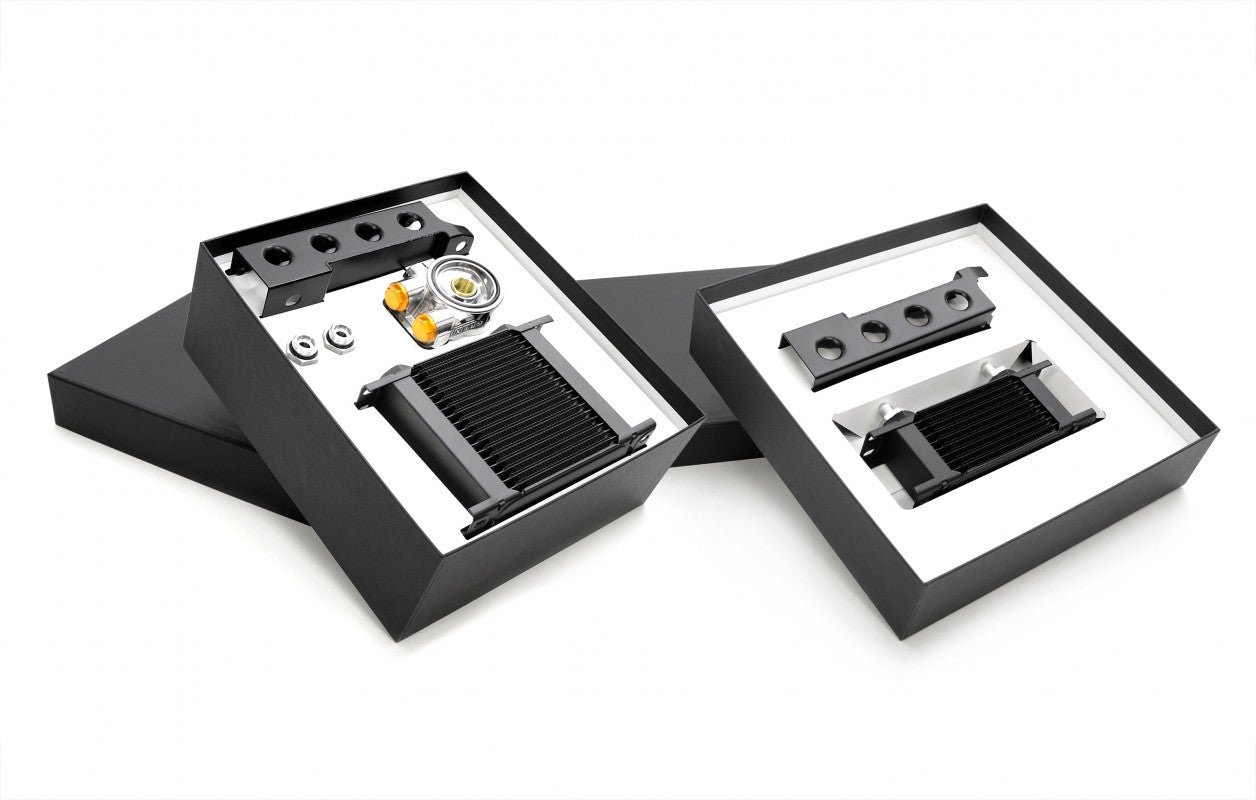

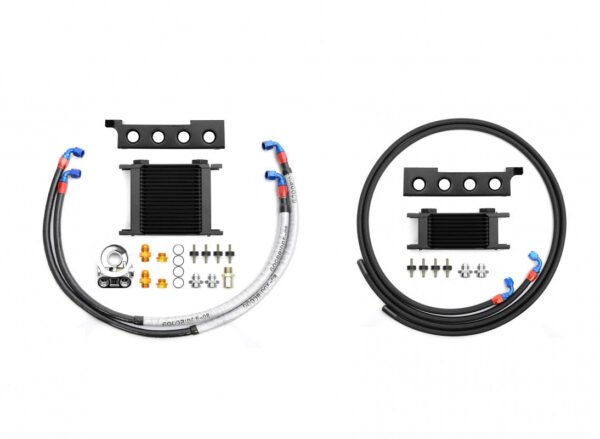

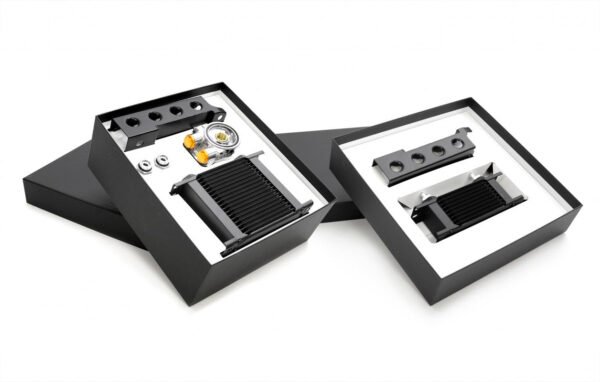

Each kit is supplied with Setrab cores, rated for working temperatures from -40°C to 150°C with a maximum burst pressure of 37 Bar(g). Two configurations are available: 10-row coolers for both circuits, or a 10-row power steering cooler paired with a 19-row engine oil cooler.

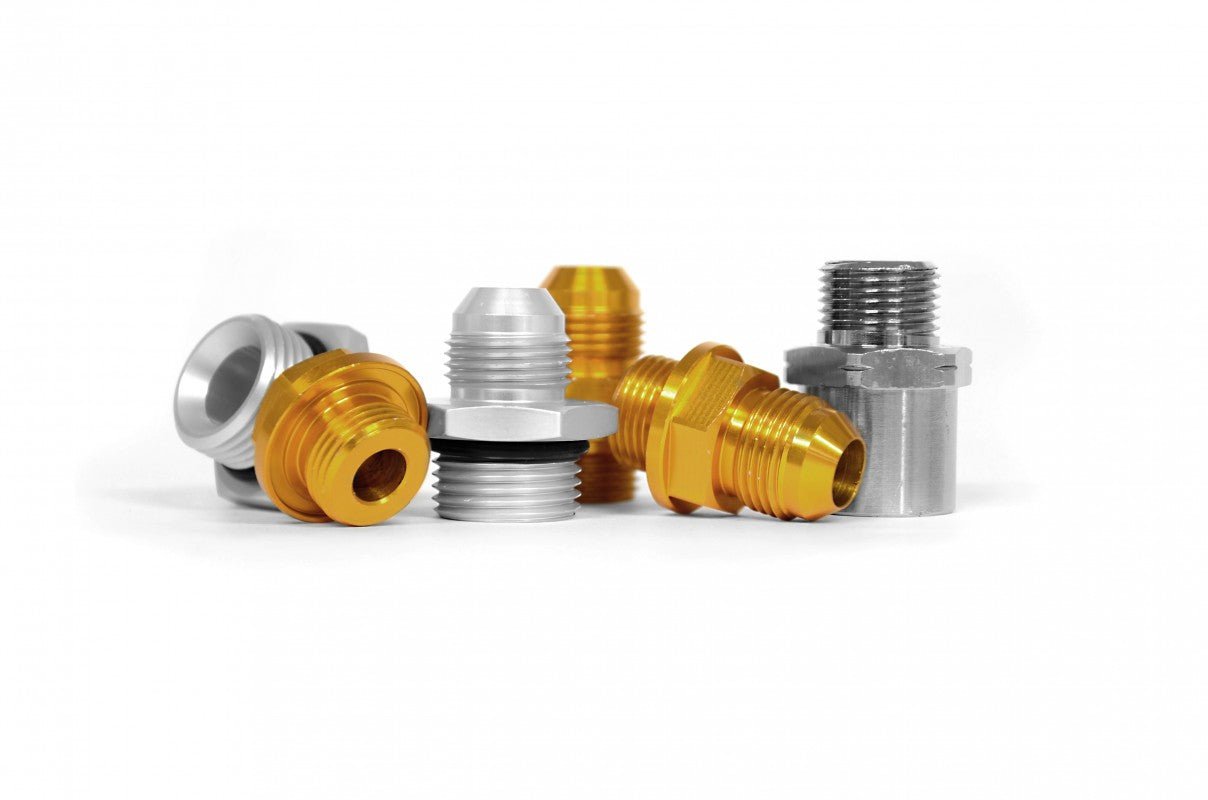

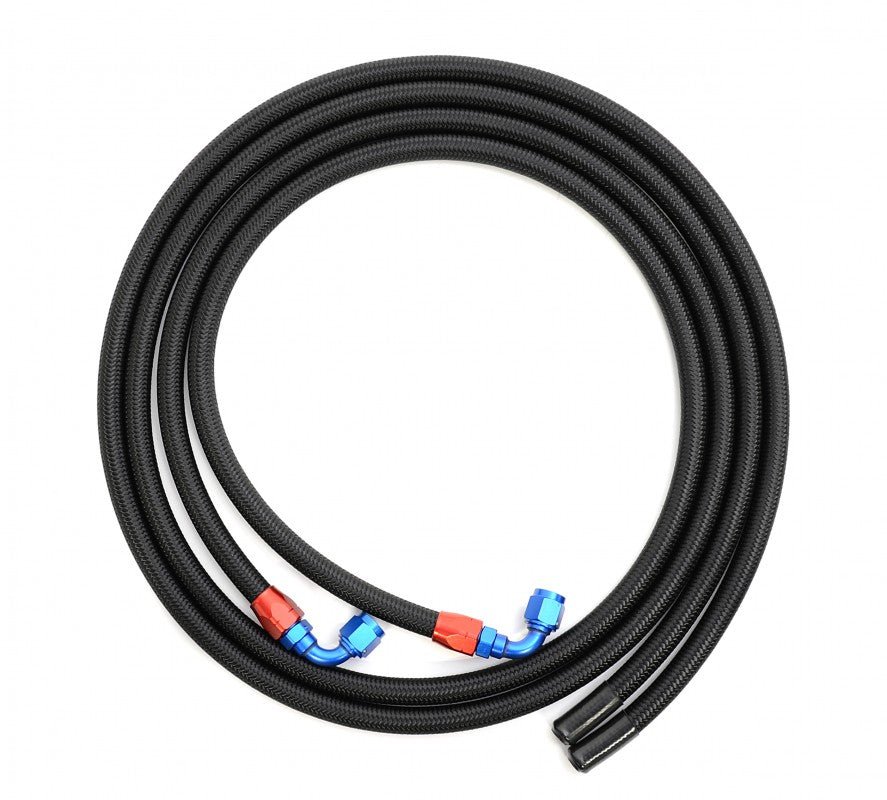

The oil cooler lines use Goodridge -8 200 Series stainless steel braided hose with a silicone fire-retardant sleeve (rated -54°C to 260°C, with short-term fire protection to 1090°C). The power steering lines use Goodridge -6 210 Series hose, a lighter braided design suited to power steering fluid. All line ends use Goodridge re-usable alloy fittings with a Triple Seal/Double O-ring design and 360-degree swivel ends.

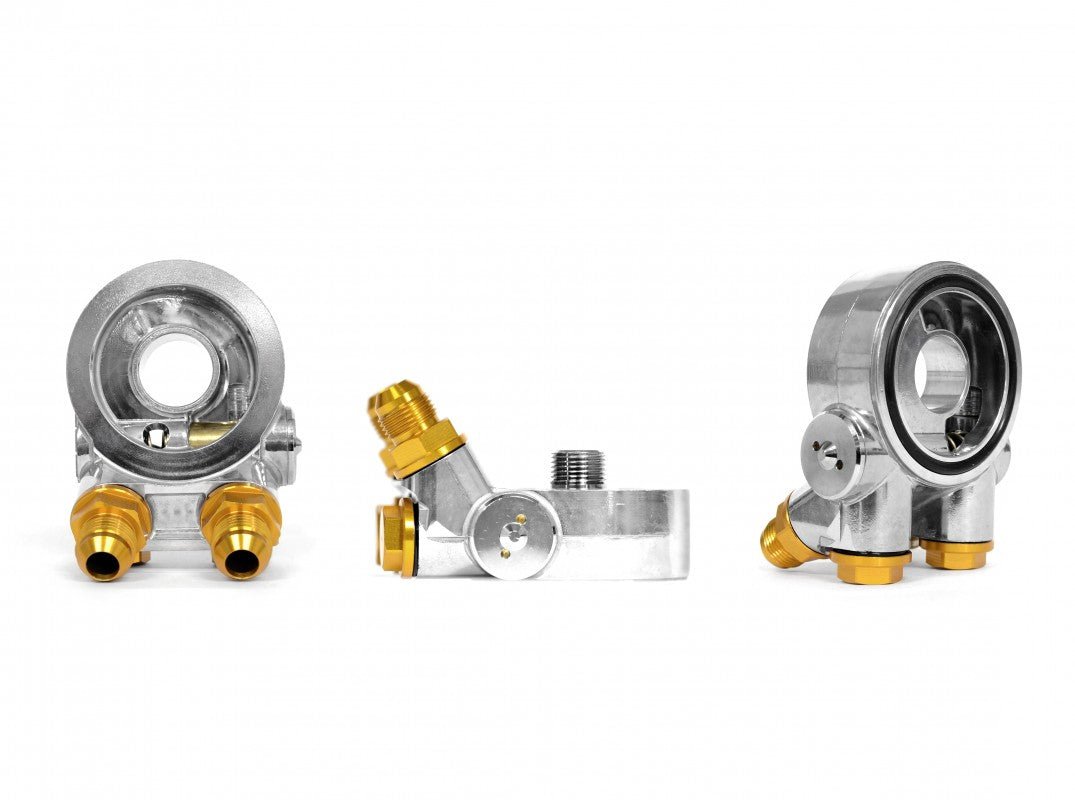

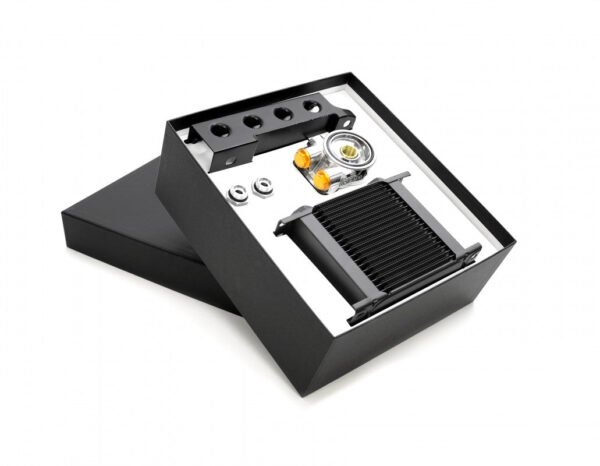

The kit includes a thermostatically controlled oil sandwich plate that opens at 85°C, fitting Twin Scroll, Equal Length and Unequal Length exhaust manifold variants. It has two spare ports for oil temperature and pressure sensors, supplied with blanks if not required.

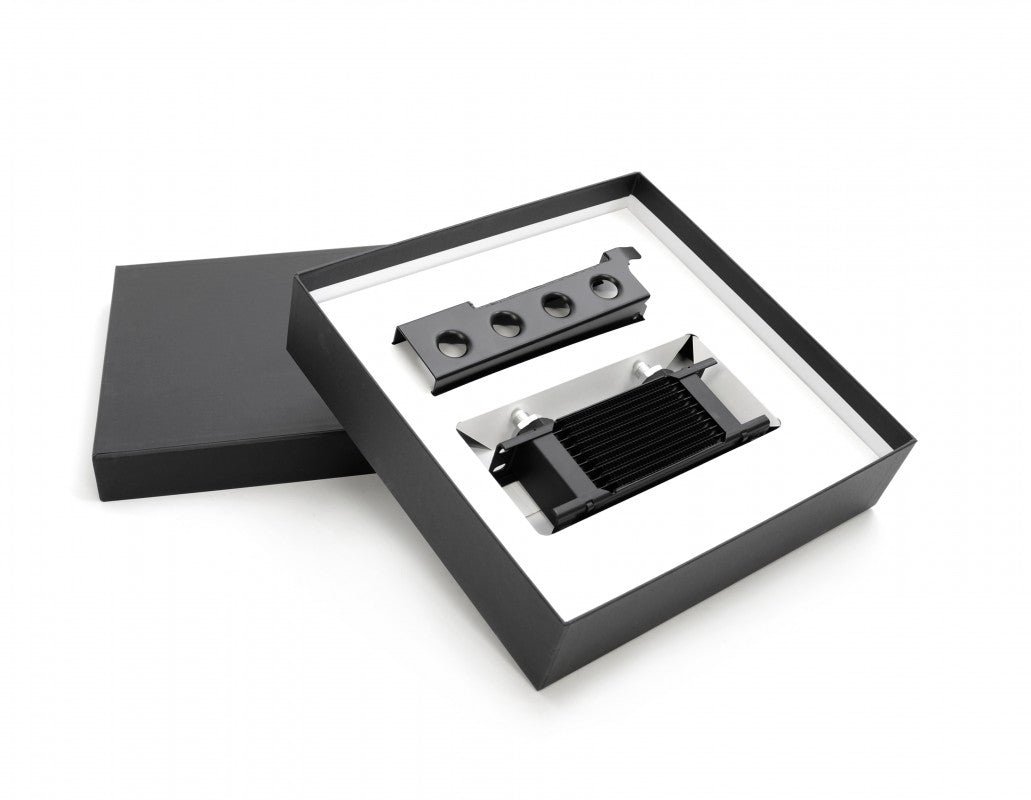

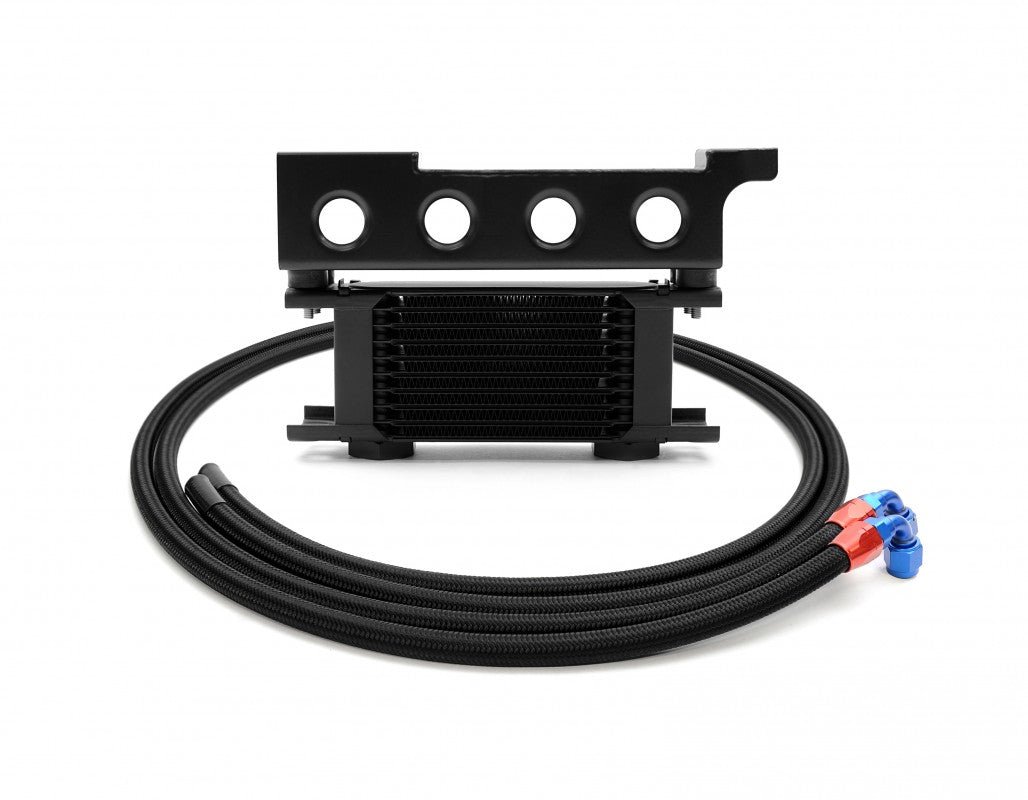

Mounting brackets are available in black powder-coated steel or brushed stainless steel; please select the correct core size and bracket finish before ordering.
