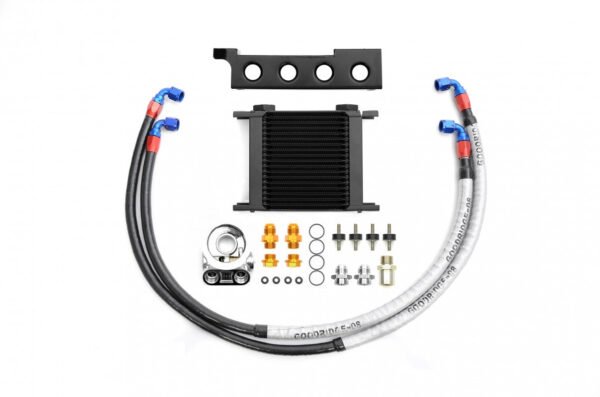

RCM Oil Cooler Kit 2008-2012
Price range: £462.00 through £528.00

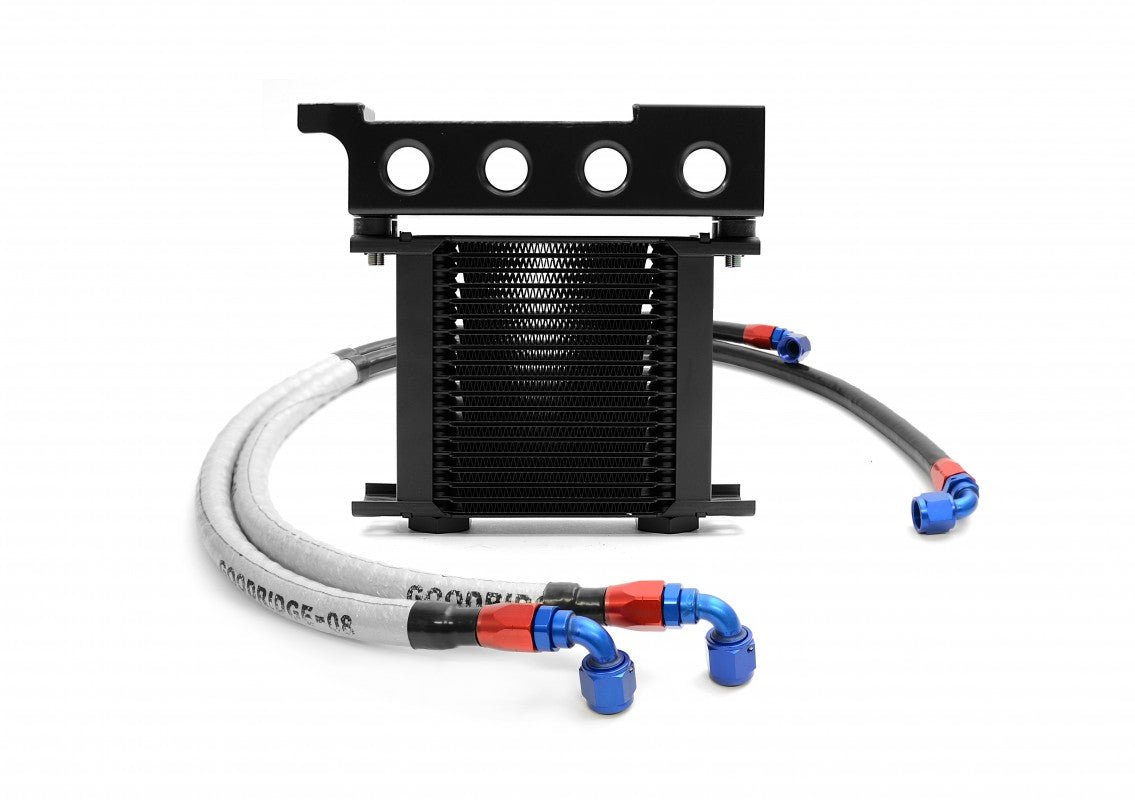

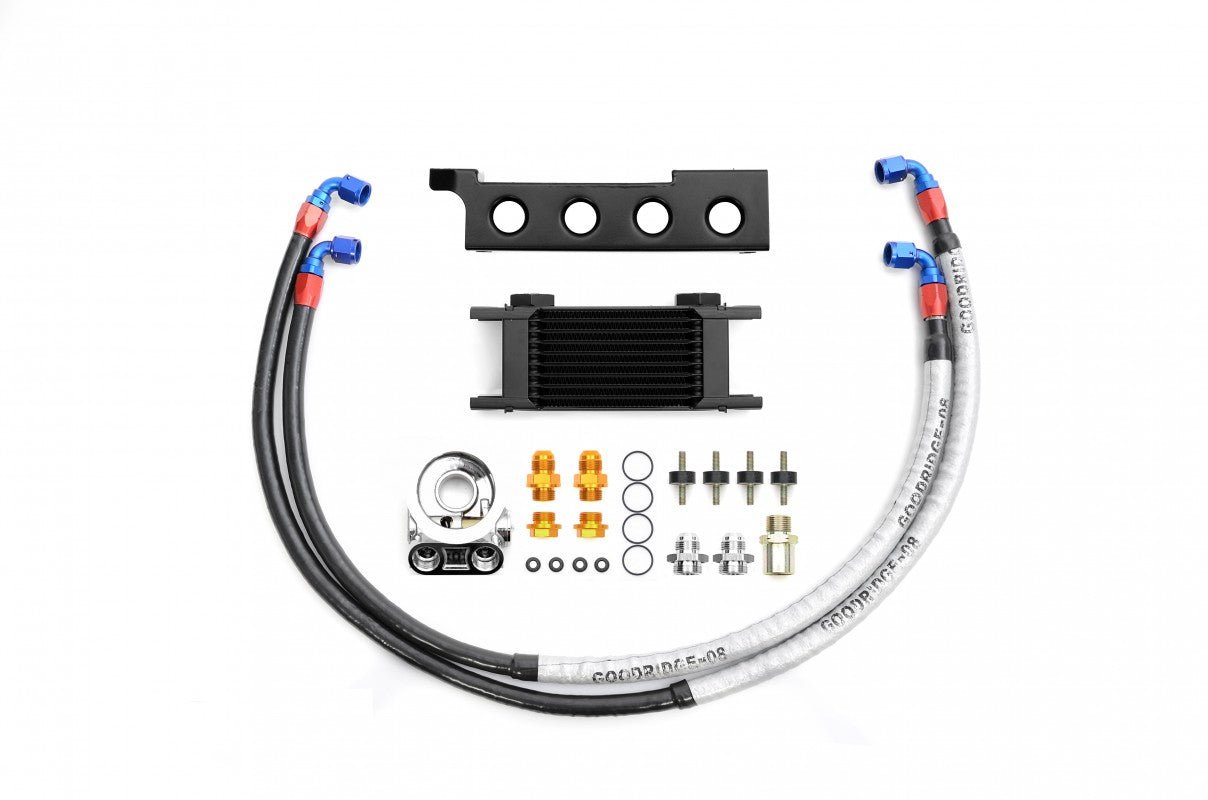

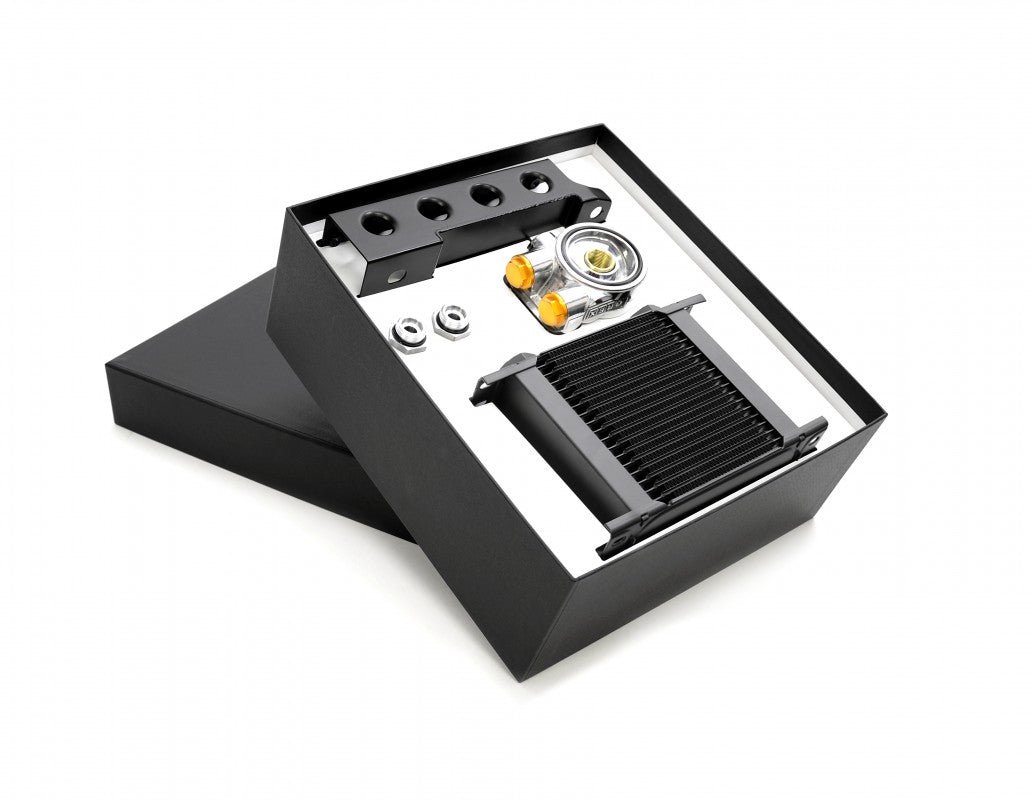

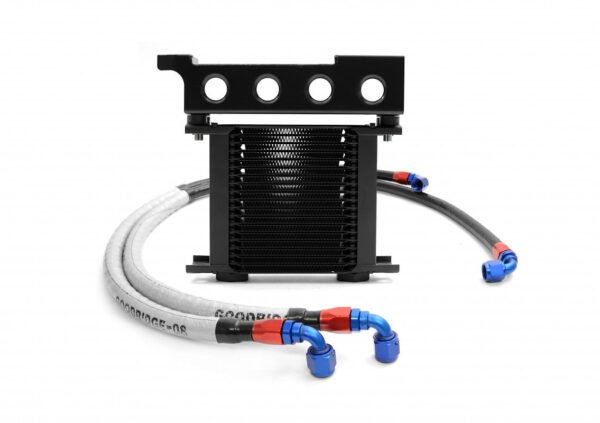

An engine oil cooler kit for Subaru Impreza / WRX STI (2008–2012), with a Setrab core and Goodridge braided hose. Available with a 10-row or 19-row core and a steel mounting bracket.
SKU:
EKS Fitment Advice
EKS currently identifies this product as Direct Fitment
Compatibility of any product, greatly depends on model + year + trim + mods. Most Subaru’s are in different states of tune, so please contact Rich, from EKS to get clarity before purchasing.
Potential Applications
Subaru Impreza / WRX STI 2008-2013 (GR/GV)
Full List of EKS Fitment Evidence Types
For context, here are all categories of fitment according to EKS.
- Direct Fitment: means the product is currently listed as fitting the model/generation shown.
- Shared / Application Fitment: means the product may suit shared Subaru platforms, engines, turbos, drivetrains, brakes, cooling/intake setups or modified applications.
- Universal / Service Item: means the product is broadly useful for Subaru servicing, maintenance, workshop use or general ownership.
- Needs Confirmation: means the product appears relevant, but final fitment may depend on extra details.
Product Description
This engine oil cooler kit is designed for Subaru Impreza / WRX STI models from 2008 to 2012, to help control oil temperatures under hard driving.

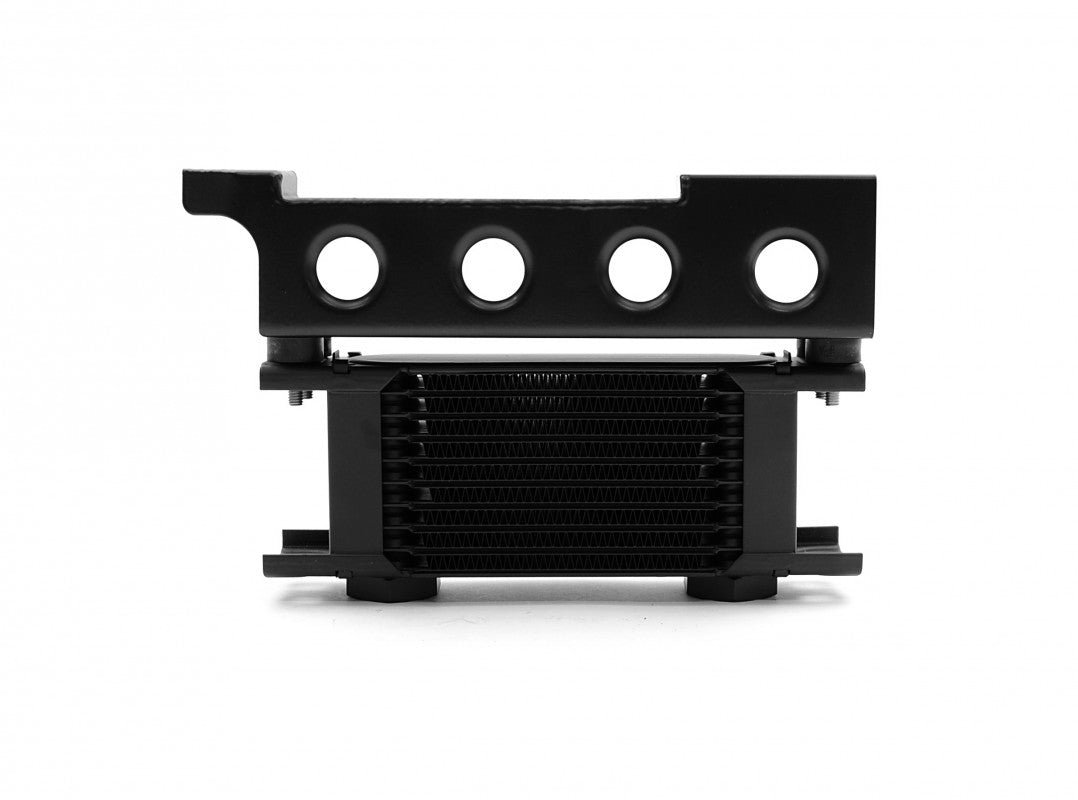

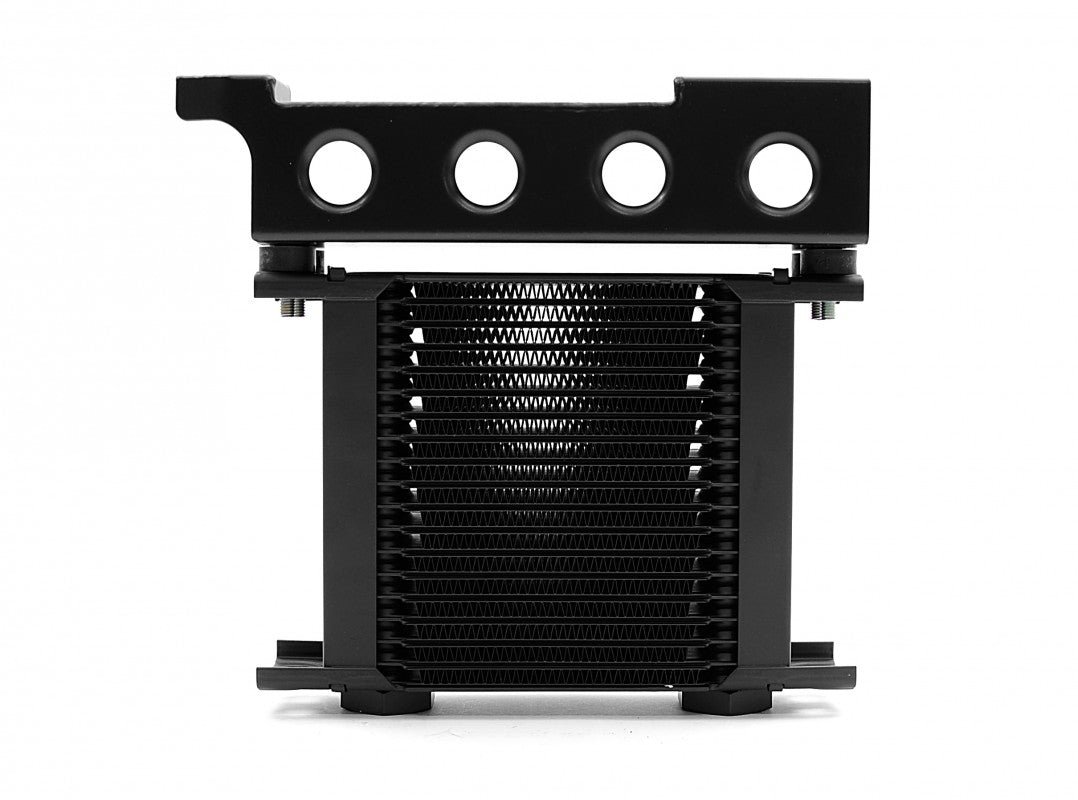

The kit is supplied with a Setrab core, rated for working temperatures from -40°C to 150°C with a maximum burst pressure of 37 Bar(g), available in 10-row or 19-row versions.

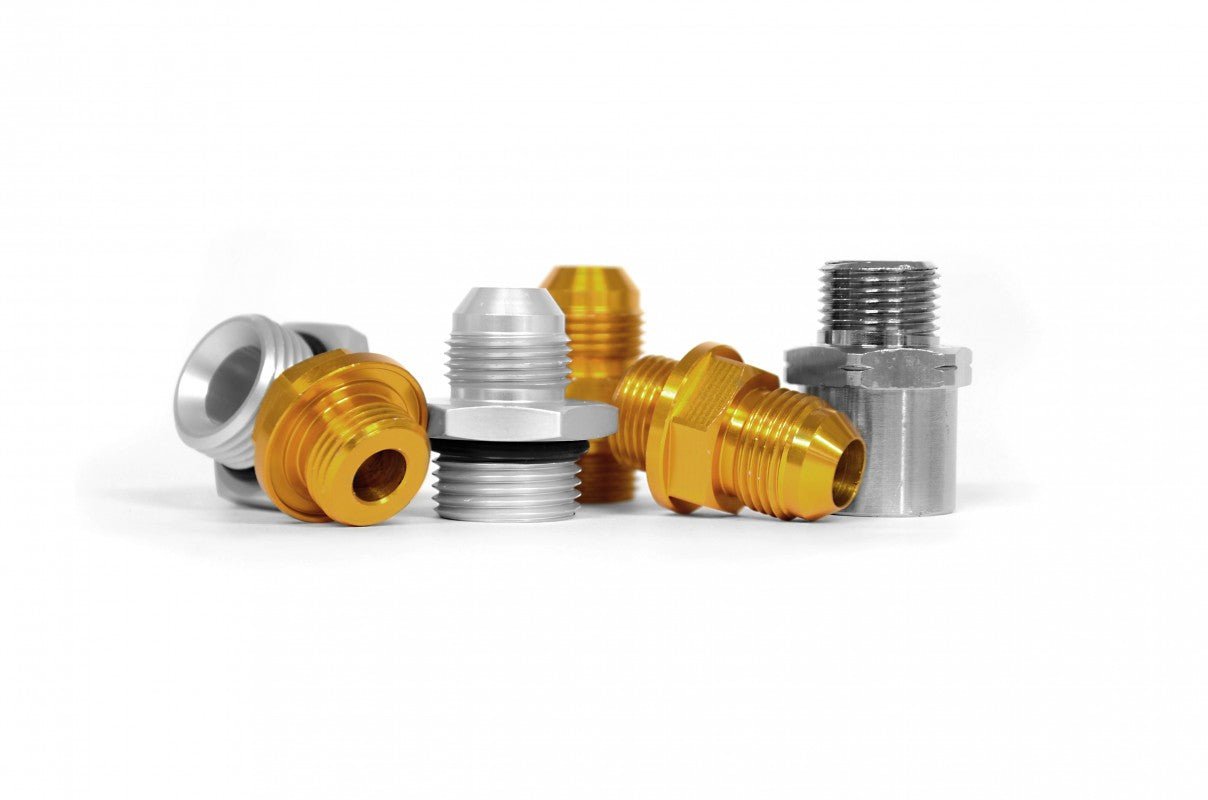

Lines use Goodridge -8 200 Series stainless steel braided hose with a silicone fire-retardant sleeve (rated -54°C to 260°C, with short-term fire protection to 1090°C), finished with Goodridge re-usable alloy fittings featuring a Triple Seal/Double O-ring design and 360-degree swivel ends.
The mounting bracket is black powder-coated steel.

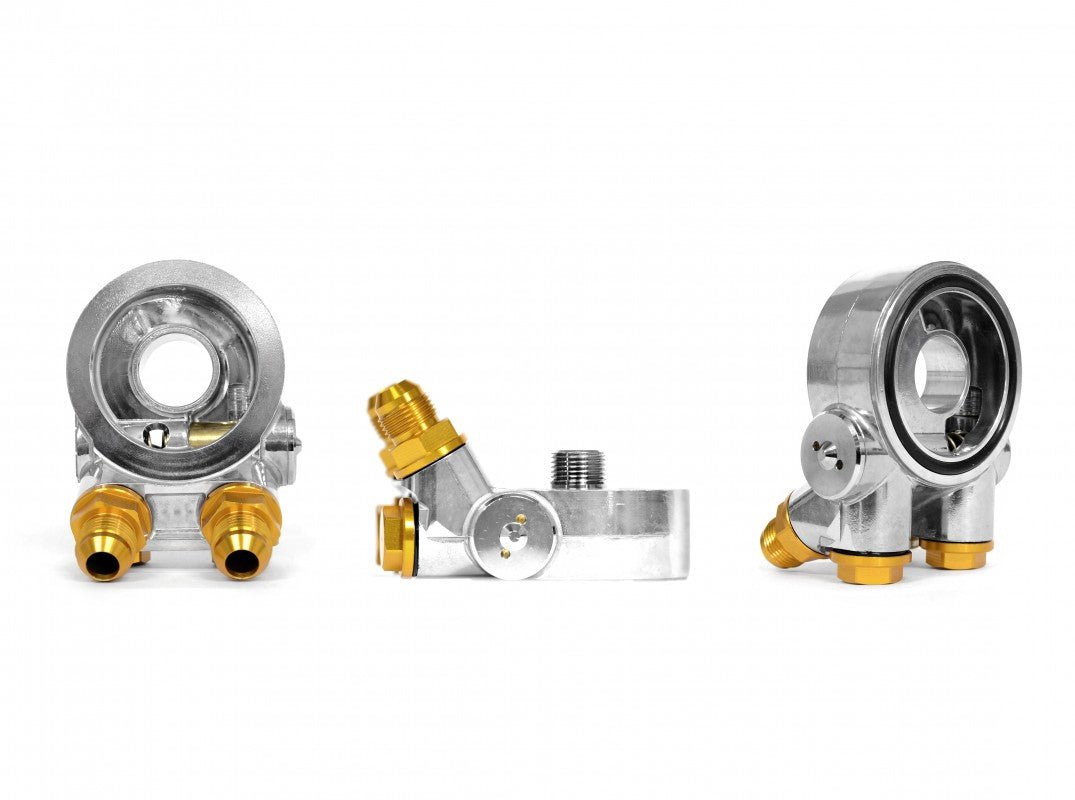

The kit includes a thermostatically controlled oil sandwich plate that opens at 85°C, fitting Twin Scroll, Equal Length and Unequal Length exhaust manifold variants. It has two spare ports for oil temperature and pressure sensors (supplied with blanks if not required) and an extended union to allow fitment of both the plate and the oil filter.
A version combined with a power steering cooler is also available separately.
