RCM Oil Sump Pan Baffle Plate
£155.94
A rubber-flap baffle plate for the Subaru sump pan, designed to reduce oil surge and keep oil around the pick-up pipe during hard cornering. Recommended for fast road, track, rally and sprint use, and can be paired with a baffled sump for extra oil control.
SKU: RCM2428
EKS Fitment Advice
EKS currently identifies this product as Universal / Service Item
Compatibility of any product, greatly depends on model + year + trim + mods. Most Subaru’s are in different states of tune, so please contact Rich, from EKS to get clarity before purchasing.
Potential Applications
Subaru Impreza 1992-2000 (GC/GF), Subaru Impreza 2001-2002 (GD/GG Bugeye), Subaru Impreza 2003-2005 (GD/GG Blobeye), Subaru Impreza 2006-2007 (GD/GG Hawkeye), Subaru Impreza / WRX STI 2008-2013 (GR/GV), Subaru WRX STI 2014-2021 (VA/VAB), Subaru WRX 2021+ (VB), Subaru Forester 1996-2002 (SF), Subaru Forester 2003-2005 (SG early), Subaru Forester 2006-2007 (SG facelift), Subaru Forester 2008-2013 (SH), Subaru Forester 2014-2018 (SJ), Subaru Forester 2019+ (SK), Subaru BRZ 2012-2020 (ZC6), Subaru BRZ 2021+ (ZD8), Subaru Legacy 1992-2003, Subaru Legacy 2003-2009 (BL/BP), Subaru Legacy 2009-2014 (BM/BR), Subaru Legacy 2014+ / Outback related
Full List of EKS Fitment Evidence Types
For context, here are all categories of fitment according to EKS.
- Direct Fitment: means the product is currently listed as fitting the model/generation shown.
- Shared / Application Fitment: means the product may suit shared Subaru platforms, engines, turbos, drivetrains, brakes, cooling/intake setups or modified applications.
- Universal / Service Item: means the product is broadly useful for Subaru servicing, maintenance, workshop use or general ownership.
- Needs Confirmation: means the product appears relevant, but final fitment may depend on extra details.
Product Description
The Subaru “flat-four boxer” engine layout is particularly prone to oil surge: under hard cornering, oil can move away from the sump and pool around the cylinder head castings, leaving less oil available at the pick-up pipe. If the pick-up pipe runs short of oil, engine components can be starved of lubrication and cooling.

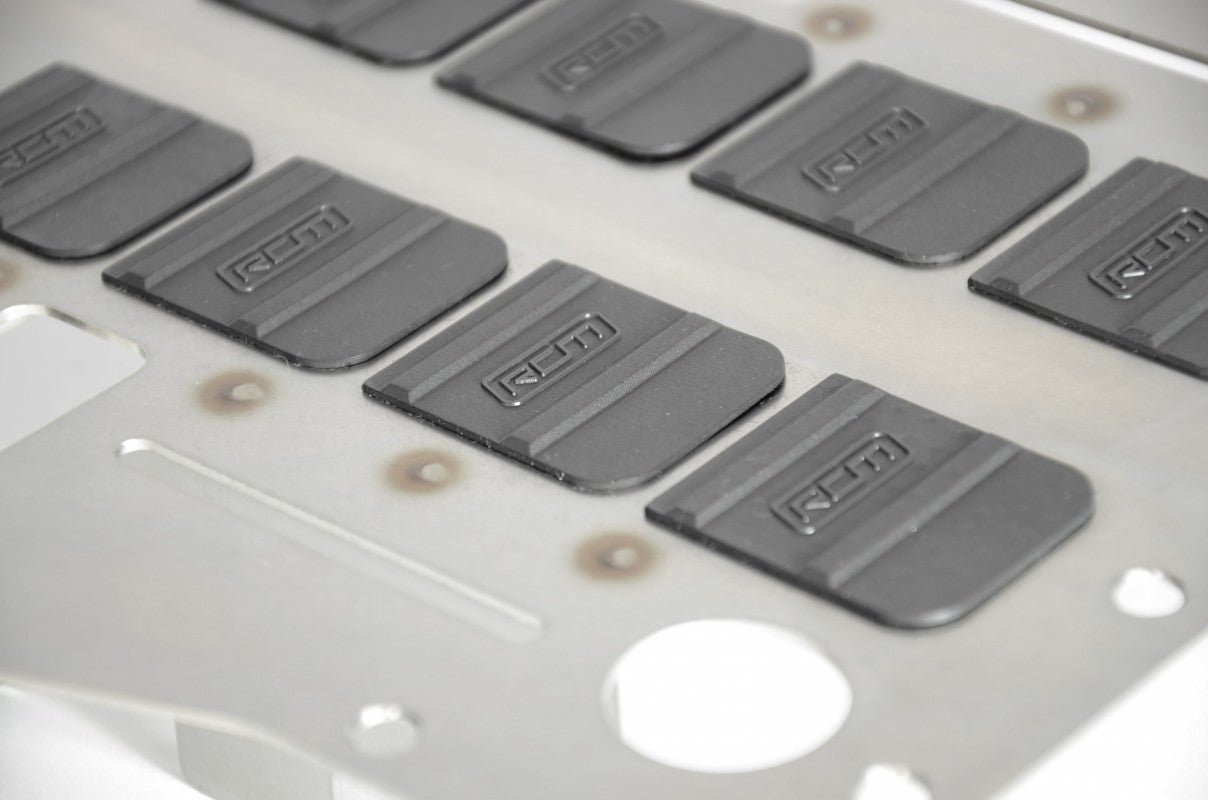

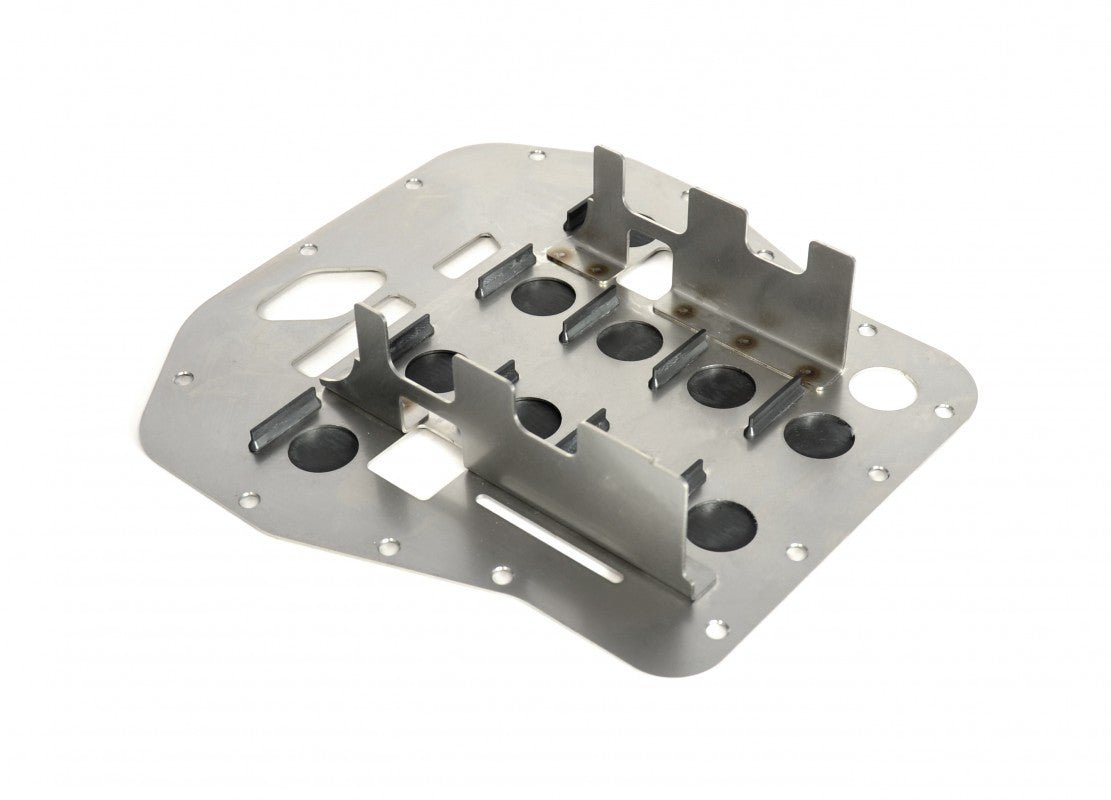

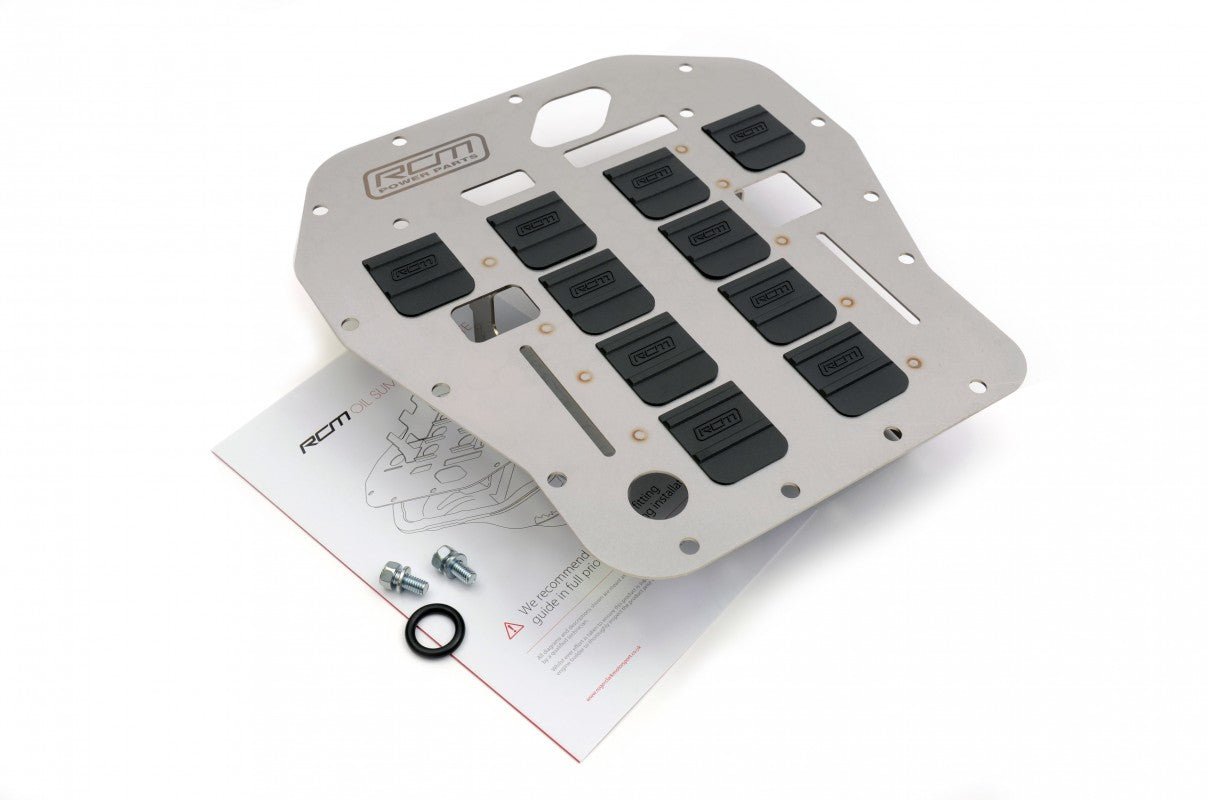

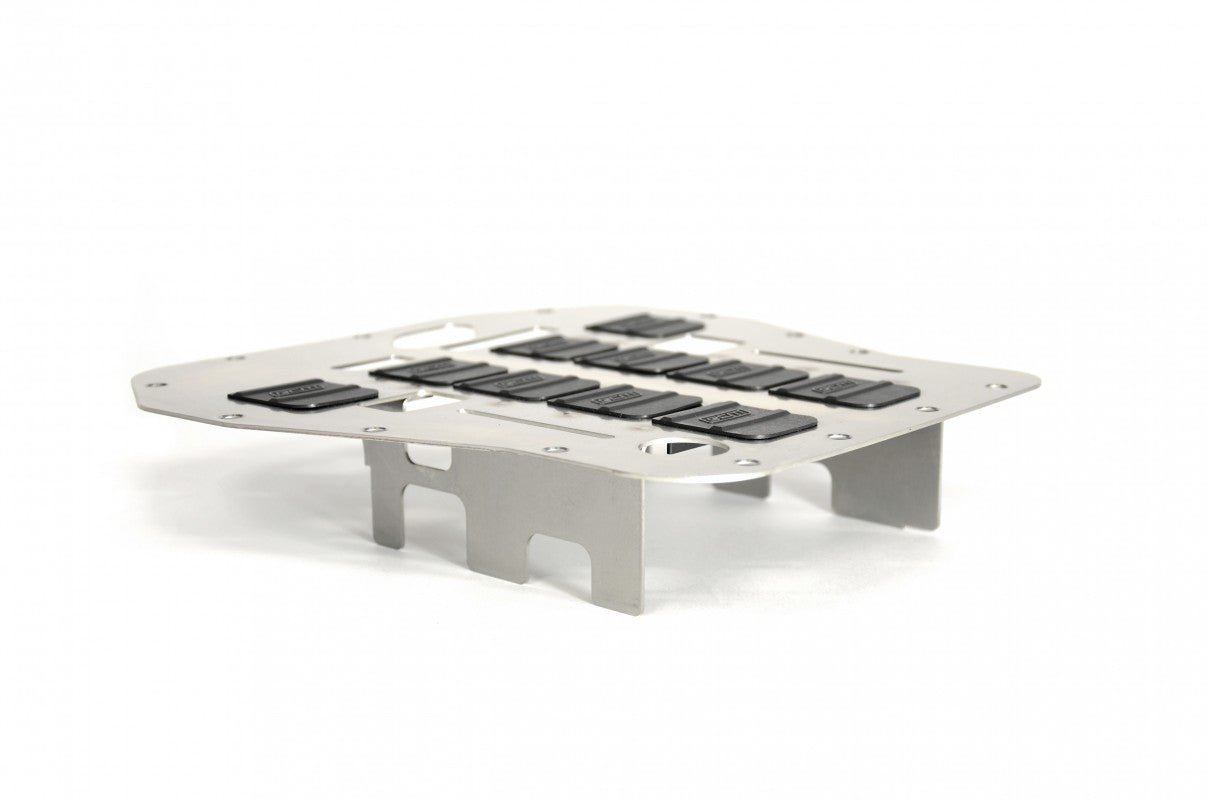

This baffle plate fits over the sump like a lid, using one-way rubber flaps (diverters) that let oil into the sump but make it harder for oil to escape when cornering hard.
It is recommended for fast road, track day, rally and sprint use, and can be used alongside a baffled sump for further oil control, with a dry sump system as the next step up.
Please contact Scooby Upgrades to confirm compatibility with your vehicle before ordering.
